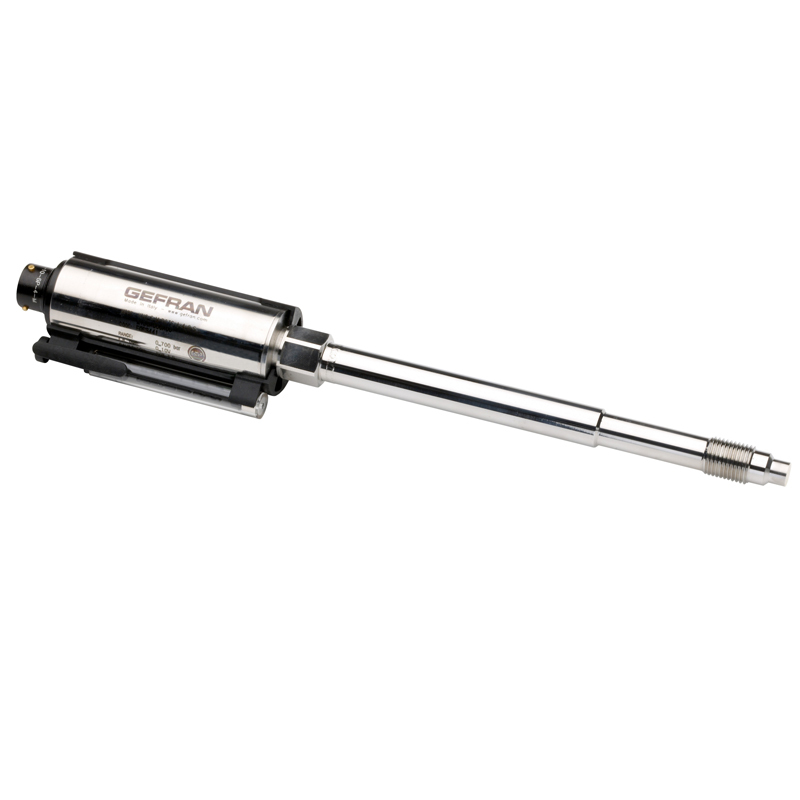

GEFRAN熔化高溫壓力傳感器KN Voltage output

Overview

KN系列用在工作溫度可能達到 538°C (1000°F)的高溫應用中，比如高溫工程聚合物。

K系列利用標準熔體壓力原理和結構，但為了壓力傳輸采用幾乎不可壓縮的NAK (鈉化鉀) 。

K系列應變技術方面采用了粘合的應變箔片。

Description

壓力范圍：0-35 到 0-1000 bar / 0-500 到 0-150000 psi
精確度：< ±0.25% FSO (H); < ±0.5% FSO (M)
液壓傳輸系統保證了在工作溫度下壓力信號穩定性。液體符合RoHS 指令。NaK被認可為安全物質(GRAS)。
每種型號中NaK 含量：KN0系列 (30mm3) (0.00183 in3) , KN1, KN2, KN3 (40mm3) (0.00244 in3)
1/2-20UNF, M18x1.5標準螺紋，其他類型可訂購
自動調零功能
莖漂移自動補償功能(SP 版本)
鉻鎳鐵合金718鍍GTP膜片，適于最高 538°C (1000°F)的溫度
15-5 PH鍍GTP膜片，適于最高 400°C (750°F)的溫度
HastelloyC276 膜片，適于最高 300°C(570°F)的溫度
100 bar-1500 psi 以下量程用17-7 PH鍍GTP波紋膜片

立即咨詢下一個產品

描述
參數
設備圖片

F069741 KN0-6-H-B02C-1-4-0-I 2130X000F00

F043325 KN0-6-M-B01M-1-3-0-I 2130X000X00

F033652 KN0-6-M-B01M-1-4-0-H 2130X000X00

F033642 KN0-6-M-B02C-1-4-0-H 2130X000X00

F068993 KN0-6-M-B02C-1-4-0-S 2130X000X00

F044466 KN0-6-M-B05C-1-4-0-I 2130X000X00

F043344 KN0-6-M-B05C-1-4-0-S 2130X000X00

F043082 KN0-6-M-B06C-1-4-0-S 2130X000X00

F033442 KN0-6-M-B07C-1-4-0-H 2130X000X00

F033437 KN0-6-M-B07C-1-4-0-I 2130X000X00

F033441 KN0-6-M-B07C-1-4-0-S 2130X000X00

F069257 KN0-6-M-B07D-1-2-0-S 2130X000X00

F033651 KN0-6-M-B35D-1-4-0-H 2130X000X00

F054761 KN0-6-M-B35U-1-4-0-S 2130X000X00

F057575 KN0-6-M-B35U-4-4-0-S 2130X000X00

F063691 KN1-6-H-B01C-1-1-D-I 2130X000X00

F062107 KN1-6-H-B01M-1-1-D-I 2130X000X00

F063276 KN1-6-H-B35D-1-1-D-I 2130X000X00

F044545 KN1-6-H-P15C-1-4-D-S 2130X000X00

F068793 KN1-6-M-B01C-1-4-D-S 2130X000X00

F043423 KN1-6-M-B01M-1-1-D-I 2130X000X00

F033656 KN1-6-M-B01M-1-4-D-H 2130X000X00

F043422 KN1-6-M-B01M-1-4-D-I 2130X000X00

F060419 KN1-6-M-B01M-1-4-D-S 2130X000X00

F033653 KN1-6-M-B02C-1-4-D-H 2130X000X00

F053091 KN1-6-M-B02C-1-4-D-I 2130X000X00

F053133 KN1-6-M-B02C-1-4-D-S 2130X000X00

F066525 KN1-6-M-B04C-1-4-F-S 2130X000X00

F062384 KN1-6-M-B05C-1-4-D-I 2130X000W00

F035106 KN1-6-M-B05C-1-4-D-I 2130X000X00

F042429 KN1-6-M-B05C-1-4-D-S 2130X000X00

F069588 KN1-6-M-B05C-1-4-E-H 2130X000X00

F063762 KN1-6-M-B05D-1-2-D-I 2130X000X00

F033655 KN1-6-M-B07C-1-4-D-H 2130X000X00

F033439 KN1-6-M-B07C-1-4-D-I 2130X000X00

F068596 KN1-6-M-B07C-1-4-D-S 2130X000X00

F033654 KN1-6-M-B35D-1-4-D-H 2130X000X00

F034630 KN1-6-M-B35D-1-4-D-I 2130X000X00

F069587 KN1-6-M-B35D-1-4-E-H 2130X000X00

F035608 KN1-6-M-P05M-1-4-D-I 2130X000X00

F060933 KN1-6-M-P05M-1-5-D-S 2130X000X00

F041857 KN1-6-M-P10M-1-4-D-H 2130X000X00

F043757 KN1-6-M-P10M-1-4-D-I 2130X000X00

F041576 KN1-6-M-P10M-1-4-D-S 2130X000X00

F068263 KN2-6-H-B35D-1-4-F-H 2130X000X00

F050531 KN2-6-H-P10M-1-4-D-S 2130X000X00

F050837 KN2-6-H-P10M-1-5-D-S 2130X000X00

F045619 KN2-6-H-P10M-1-M-D-H 2130X000X00

F068984 KN2-6-M-B01C-1-2-D-I 2130X000X00

F068490 KN2-6-M-B01C-1-3-D-I 2130X000X00

F042866 KN2-6-M-B01M-1-4-D-S 2130X000X00

F033440 KN2-6-M-B07C-1-4-D-I 2130X000X00

F065756 KN2-6-M-B07C-1-4-D-S 2130X000S00

F050530 KN2-6-M-P10M-1-3-F-I 2130X000X00

F041577 KN2-6-M-P10M-1-4-D-S 2130X000X00

F053253 KN3-6-H-B01C-1-0-L-H 2130X000X00

F066024 KN3-6-H-B02C-1-0-L-H 2130X000X00

F066185 KN3-6-M-B01C-1-0-L-H 2130X000X00

F067005 KN3-6-M-B02C-1-0-L-S 2130X000X00

F066492 KN3-6-M-B05C-1-0-L-S 2130X000X00

F068465 KN3-6-M-B07D-1-0-L-S 2130X000X00

F045207 KN3-6-M-B35D-1-0-L-H 2130X000X00

F052284 KN3-6-M-B35U-1-0-L-H 2130X000X00

F048966 KN3-6-M-P10M-1-0-L-I 2130X000X00
